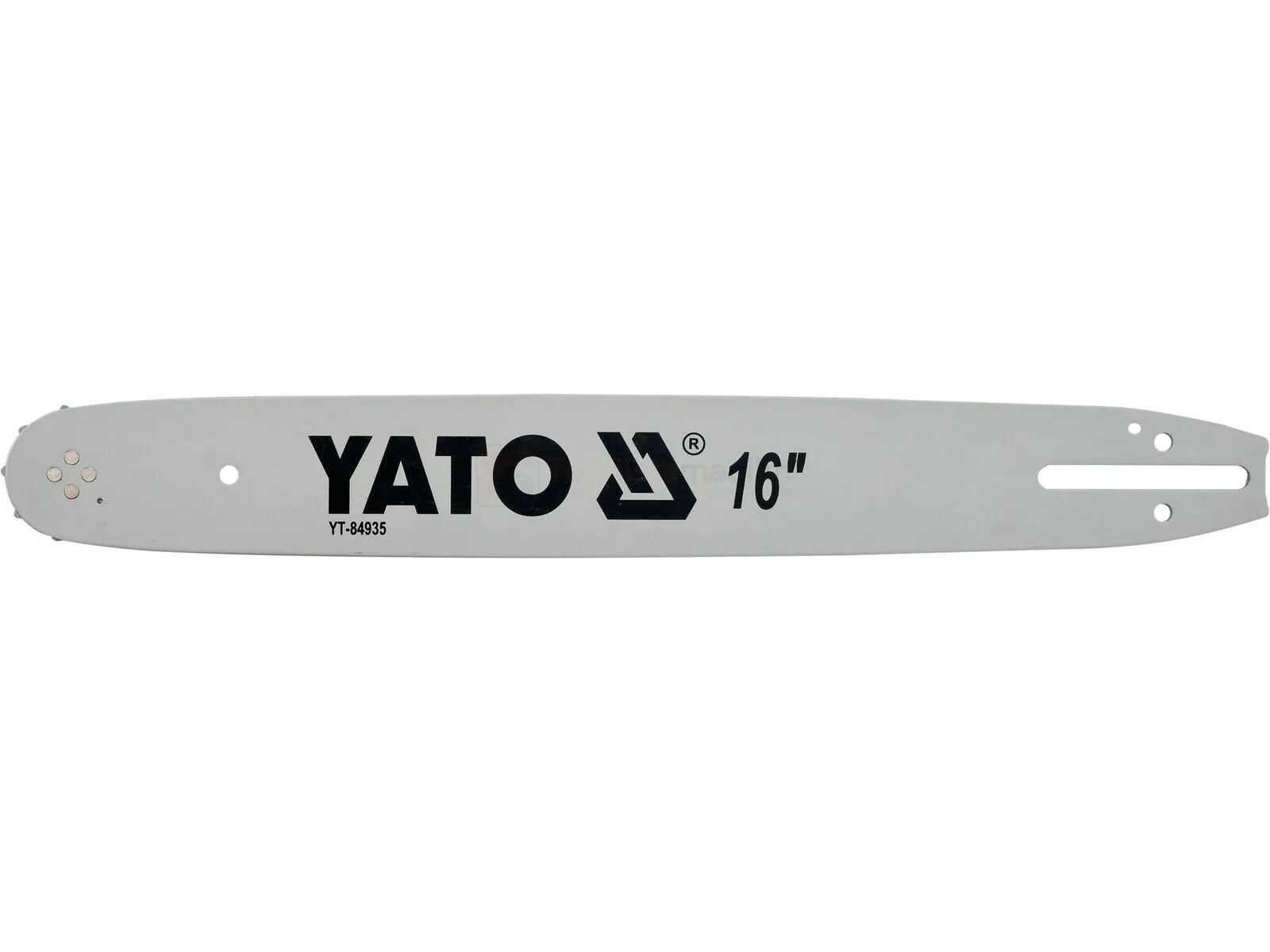

YATO cordless chainsaw guide bar 16" 3/8"P
Official YATO Dealer
- 100% genuine products
- Manufacturer warranty
- Professional consultation
Fits these products
Technical Specifications
Chain pitch: 3/8" (9.52 mm)
Guide link length: 0.05 inches (1.3 mm)
Number of links: 56
Guide plate length: 16" (400 mm)
Guide plate thickness: 0.322 inches (8.2 mm)
Material: steel 65Mn
Mounting method: P
Automatic chain lubrication: yes
Number of rivets: 4
Number of teeth: 9
Bearing: yes
Bearing type: roller
Chain saw chain guide, which is made of Mn65 manganese steel, which significantly increases the guide's resistance to wear and overheating, extending its life.
The star end is fixed with four rivets, which ensures the greatest accuracy of installation and increases the strength of the guide.
In addition, the star end has a roller bearing, which ensures the precise guidance of the chain, minimizing resistance during operation.
YATO saws have a special oil tank lubrication system, from which the chain collects oil and distributes it evenly along the entire length of the bar.
This reduces working resistance and increases cooling, which significantly extends the life of the entire cutting system.
YATO guide plates are designed for home and professional use. They are designed for working around the house and in the garden.
They are also suitable for felling trees.
It is recommended to use guides with YATO YT-84963 or YT-84960 chains.
They can also be used with chains from other manufacturers.
Chain pitch: 3/8" (9.52 mm)
Guide link length: 0.05 inches (1.3 mm)
Number of links: 56
Guide plate length: 16" (400 mm)
Guide plate thickness: 0.322 inches (8.2 mm)
Material: steel 65Mn
Mounting method: P
Automatic chain lubrication: yes
Number of rivets: 4
Number of teeth: 9
Bearing: yes
Bearing type: roller
Returns & Warranty
Product returns
14-day right of withdrawal. Terms for consumers and business customers.
Return instructionsWarranty
All products come with manufacturer warranty as required by law.
We ship from Estonia
Delivery time depends on stock
This product has no reviews yet. Be the first to rate it.
Product description
Chain saw chain guide, which is made of Mn65 manganese steel, which significantly increases the guide's resistance to wear and overheating, extending its life.
The star end is fixed with four rivets, which ensures the greatest accuracy of installation and increases the strength of the guide.
In addition, the star end has a roller bearing, which ensures the precise guidance of the chain, minimizing resistance during operation.
YATO saws have a special oil tank lubrication system, from which the chain collects oil and distributes it evenly along the entire length of the bar.
This reduces working resistance and increases cooling, which significantly extends the life of the entire cutting system.
YATO guide plates are designed for home and professional use. They are designed for working around the house and in the garden.
They are also suitable for felling trees.
It is recommended to use guides with YATO YT-84963 or YT-84960 chains.
They can also be used with chains from other manufacturers.
